Ref: Dewalt D21570K-GB
Dewalt 1300 watt diamond core drill supplied in carry case with a maximum core drilling capacity of 127mm.
£209.96 inc VAT
(£174.97 exc. VAT)

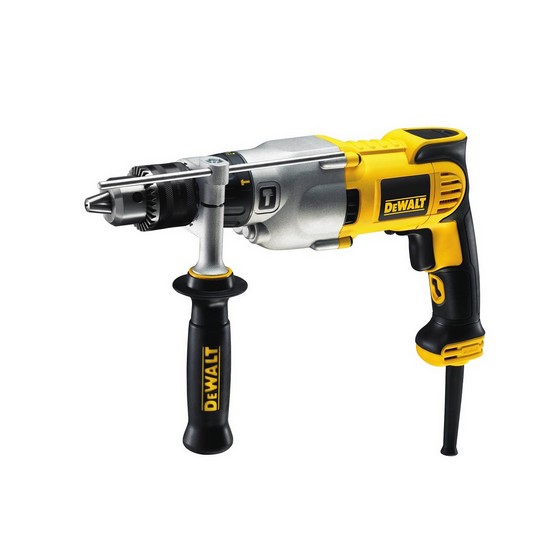

Dewalt D21570K-GB Diamond Core Drill 240v


  • New motor gives improved performance in applications with dry core bits up to 127mmn in bricks or soft masonry
  • Electronics provide e-clutch, power-up and overload protection
  • Two speed gearbox for increased versatility when drilling in wood, metal and concrete with standard drill bits
  • Electro-Mechanical clutch increases user control and protection
  • Heavy duty 16mm steel chuck allows quick bit change whilst offering excellent bit retention
  • Innovative mode selection collar allows intuitive control for optimal performance



  • Spindle Thread: 1/2" X 20 U.N.F
  • Power Input: 1300 Watts
  • Power Output: 680 Watt
    No Load Speed: 0-1250 0-3500 rpm
  • Max. Drilling Capacity [Concrete]: 22 mm
  • Max. Drilling Capacity [Masonry]: 127 mm
  • Collar Diameter: 43 mm
  • Weight: 3 kg Length: 380 mm
  • Height: 215 mm
    Hand/Arm Vibration - Diamond Drill: 13 m/s²
  • Uncertainty K 1 (Vibration): 6.8 m/s²
  • Hand/Arm Vibration - Drilling: 16 m/s²
  • Uncertainty K 2 (Vibration): 4.6 m/s²
  • Sound Pressure: 93 dB(A)
  • Sound Pressure Uncertainty: 3 dB(A)
  • Sound Power: 104 dB(A) Sound Power Uncertainty: 3 dB(A)



  • Multi-Position side handle
  • Depth Stop
  • Heavy Duty Carrying Case
