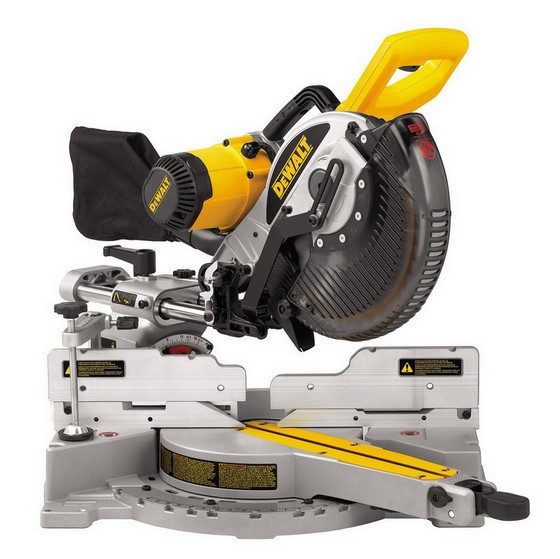

DEWALT DW717XPS 250MM DOUBLE BEVEL MITRE SAW 240V
-
Item is no longer available. For more details please call 01223 498700
-
-
DEWALT DW717XPS 250MM DOUBLE BEVEL MITRE SAW 240V
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 60° left and 0° - 50° right
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. This provides maximum stability and accuracy.
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 320 mm wide
- Quick release bevel setting provides accurate and simple setting of bevel angles up to 48° left and right
- Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
Internal code: TP051720
DEWALT DW717XPS 250MM DOUBLE BEVEL MITRE SAW 240V
- Power Input 1675 Watts
- Power Output 750 Watts
- Blade Speed 4000 rpm
- Blade Diameter 250 mm Blade Bore 30 mm
- Bevel Capacity 48/48 °
- Mitre Capacity [right/left] 50/60 °
- Cutting Capacity at 90°/90° (W x H) 302x88 mm
- Cutting Capacity at 90°/90° (W x H) 320x76 mm
- Cutting Capacity at 45°/90° (W x H) 213x88 mm
- Cutting Capacity at 45°/90° (W x H) 226x76 mm
- Cutting Capacity at 90°/45° (W x H) 302x58 mm
- Cutting Capacity at 90°/45° (W x H) 320x50 mm
- Max. Cutting Capacity at 45°/45° 226x50 mm
- Max. Depth of Cut [Saws] 152 mm
- Weight 23 kg
- Size (D x L x H): 541 x 718 x 442 mm
DEWALT DW717XPS 250MM DOUBLE BEVEL MITRE SAW 240V
- 30 tooth blade
- Blade spanner
- Dust bag
