Ref: Bosch GBH18V-EC
Delivery Next day delivery available on this item

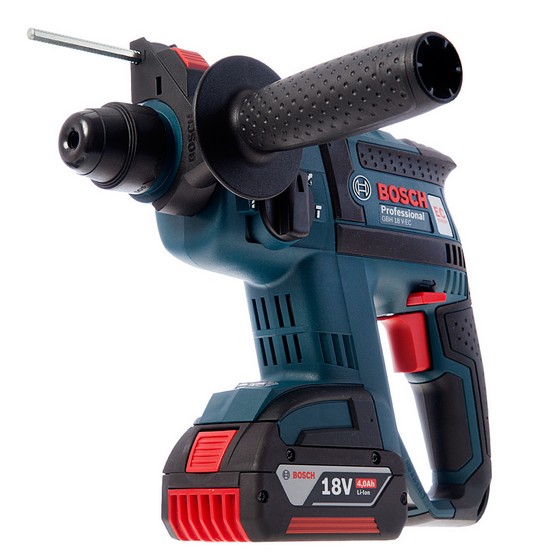

  • Bosch GBH18V-EC 18V Combi Drill With 2x4.0ah Batteries And Charger


    - Unsurpassed combination of power and weight

    - Long runtime (153 holes, 6 x 40 mm in concrete) with one battery charge (4.0 Ah) thanks to efficient Bosch EC motor

    - Low weight (only 2.6 kg) and compact design for more comfortable work

    - Highest chiselling removal rate (12 kg/hour) in its class

    - Innovative COOLpack batteries ensure optimum heat dissipation and therefore increase lifetime by up to 100% (cf. Li-Ion batteries without COOLpack)

    - Bosch Electronic Cell Protection (ECP): protects the battery against overload, overheating and deep discharge

    - Extremely robust: Electronic Motor Protection shuts down the motor in the event of overload; fully functional even after a 2-m drop test on concrete

    - No memory effect: the battery can be charged regardless of the charging state at any time, without damaging the cells

    Technical Data: GBH 18 V-EC Professional

    - Max. impact energy: 1,7 J

    - Impact rate at rated speed: 0 - 4.550 bpm

    - Rated speed: 0 - 1.400 rpm

    - Battery voltage: 18 V

    - Battery capacity: 4 Ah

    - Weight incl. Battery: 2,6 kg

    - Length: 285,0 mm

    - Height: 218,0 mm

    - Toolholder: SDS-plus

    Drilling Range

    - Drilling diameter in concrete with hammer drill bits: 4 - 18 mm

    - Optimum range of applications in concrete with hammer drill bits: 4 - 10 mm

    - Max. drilling diameter in steel: 13 mm

    - Max. drilling diameter in wood: 20 mm


    - Forward/reverse operation

    - Electronic

    - Overload clutch

    Noise/Vibration Information



    - Vibration emission value ah: 2.5 m/s²

    - Uncertainty K: 1.5 m/s²

    Drilling in Metal

    - Vibration emission value ah: 2.5 m/s²

    - Uncertainty K: 1.5 m/s²

    Hammer Drilling In Concrete

    - Vibration emission value ah: 16.0 m/s²

    - Uncertainty K: 1.5 m/s²

    The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level102 dB(A). Uncertainty K= 1,5 dB.
