Ref: Panasonic EY75A1X31
Feefo logo
Delivery Next day delivery available on this item
Features Panasonic's new Dual Voltage Technology which allows the user to use the cordless drill and driver as an 18V or 14.4V tool. More
£0.00 VAT exempt

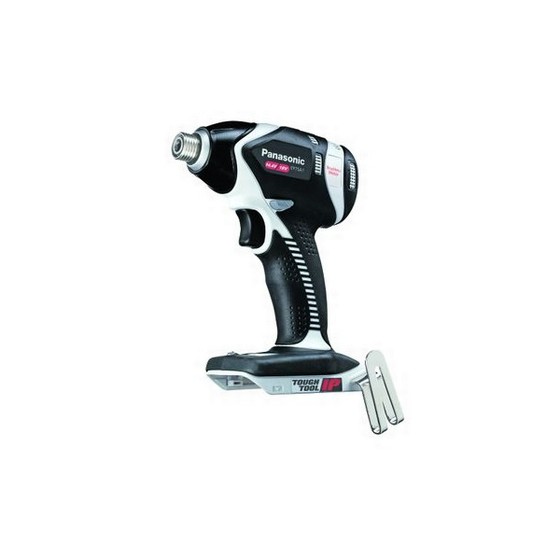

    The EY75A1 Impact Driver kit is built to take on both jobs with versatility and power that general construction, plumbing, finish carpentry and electrical installation workers need to do the job efficiently and professionally. Features Panasonic's new Dual Voltage Technology which allows the user to use the cordless drill and driver as an 18V or 14.4V tool. Its compact size - only 8" long x 9-13/32" tall x 2-5/16" wide - gets it into tight spaces. The tool can produce 372 in.-lbs. of power so it can take on tough tasks such as drilling up to 1-3/8" holes in wood or ½"-diameter holes in metal. In driving mode, the tool can drive M5 machine screws, ¼"-diameter wood and self-tapping screws easily and repetitively.The tool's beefy four-brush motor puts out power and takes on difficult tasks with much less chance of burning the motor out on jobs users sometimes expect the tool to do.

    The EY75A1L impact driver achieves an impressive max torque of 150Nm (14.4v) or 150Nm (18V) with 3 torque settings; high, medium or low. Featuring a slow start mode enables a precise start to screwdriving applications and a powerful impact mechanism working in the direction of rotation will finish the screwing with minimal effort.

    The EY75A1 has a lightweight, compact, well balanced, ergonomic design and soft grip handle making it easy to operate for extended periods without fatigue. The brushless motor lasts twice as long as a standard brush motor and transfers power and torque more efficiently making light work of the hardest jobs producing 0-2500rpm no load speed and 0-3000ipm. The impact driver also includes an integrated LED job light for working in poor lighting conditions and an hybrid switch.

    Tough tools for tough conditions
    Being Tough IP rated. having passed demanding laboratory tests of working in extremely dusty work environments and the effects of water getting sprayed on the tool by powerful jets. The dust protection test subjects the tool to a very dusty environment and then puts it to work to assure the tool was unaffected by dust exposure. Similarly, the water protection test put the tool up against increasing levels of water exposure. It attained a six out of eight levels rating, withstanding the effects of powerful water jets. Whether it's extremely dust work conditions or work in damp or wet locations, users will appreciate a tool that will keep working when others would likely fail. Consult the safety and operating instructions for more information. Water getting into the battery doesn't have to mean it's a goner. Panasonic engineers have added vents built in the battery case so water can easily drain out of the battery pack

    Battery packs that are smart, too
    Sometimes professional users are their own tool's worst enemy, attempting to push them past their design limits. This can lead to irreversible battery or tool damage. That's why Panasonic 4.2Ah LS battery pack cells are independently monitored for even discharge while preventing over-charging and over-discharging. An over-discharge sensor prevents the user from running the tool after it reaches the point where too-low voltage output could damage the battery or the tool. Plus, an internal temperature sensor flashes a warning light if internal temperatures rise, and then cuts off tool power if battery temperature reaches critical levels.


    155Nm Max Torque

    Standard Bolt Machine Screw

    No Load Speed 0-2500rpm

    Net weight 1.5kg

    Supplied with: Bare unit only. Utilise your existing Panasonic 14.4v or 18v Batteries and charger.
