TREND KWJ750P PRO MULTI-MATERIAL WORKTOP JIG 750MM

Ref: KWJ750P
new
Feefo logo
Delivery Next day delivery available on this item
Trend Pro multi-material jig for worktop joints between 150mm and 750mm. Must have jig for professional kitchen fitters. More
£123.99 inc. VAT
(£103.33 exc. VAT)
  • TREND KWJ750P PRO MULTI-MATERIAL WORKTOP JIG 750MM

    FRONT EDGE SETTING All settings are done from the front edge eliminating any discrepancies from scribing or when using non-standard width worktops

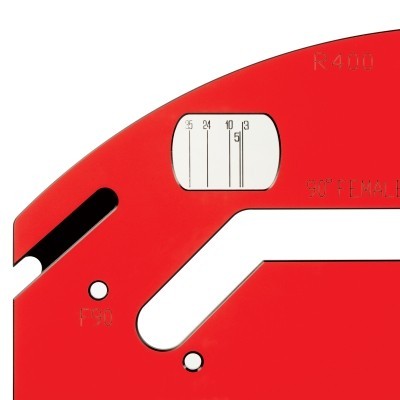

    • EASY SET REFERENCE WINDOW Fast set up for any backset, simply align to a measured line
    • 5 BACKSET OPTIONS (3, 5, 10, 24, 35mm) to meet the demands of new materials, edge profiles and trends
    • FLUSH EDGE COMPATABILITY Allows worktops to be cut flush with door faces for handleless contemporary styles without additional measuring or marking up
    • SINGLE PASS JOINT CUTTING ON NARROWER BACKSETS WITH THINNER WORKTOPS Minimises strain on the router and extends cutter life
    • FAST JOINTING Cuts a full male and female joint in 15 minutes including setting up
    • MULTIPLE WORKTOP MATERIAL COMPATABILITY Compact laminate, Composite, Solid Wood, Chipboard Laminate
    • NO SET WORKTOP WIDTH RESTRICTION No need for alignment pins for worktop widths
    • FRUSTRATION FREE SETUP Simple intuitive setup; measure, mark, clamp and cut

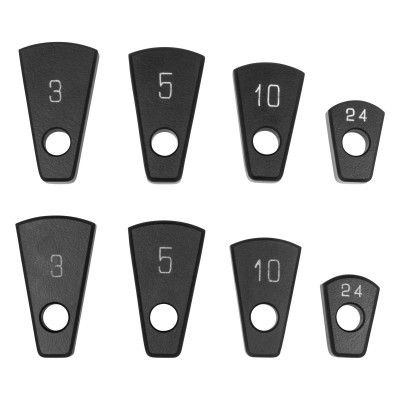

    • OFFSET CAMS Unique backset wedges for consistent easy setting
    • EDGE PROFILE COMPATABILITY Covers square edge, small radius, Postform radius and bullnose profiles

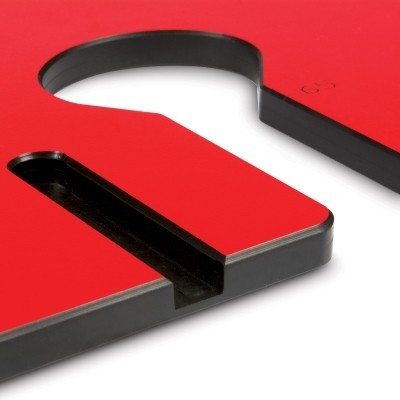

    • CLAMP RECESSES For below the surface clamping for unrestricted routing with plunge saw clamps

    Internal code: TP260695

  • TREND KWJ750P PRO MULTI-MATERIAL WORKTOP JIG 750MM

    • Length: 985 mm
    • Width: 335 mm
    • Thickness: 12 mm
    • Weight: 4.73 kg
    • End Cut: 45 degrees
    • Corner Radius: 40 mm
    • Corner Radius: 100 mm
    • Corner Radius: 400 mm
    • Corner Mitre Joint: 45 degrees
    • Female cut material width loss (inset): variable
    • Bolt recesses: 3
    • Bolt recess centres: 175 + 175 mm
    • Bolt recess width: 14 mm
    • Guide bush: 30 mm
    • Plunge router: 1/2-inch (min. 1300 watts)
    • Cutter: 12.7 mm x 50 mm cut
    • Clamps: Two
  • TREND KWJ750P PRO MULTI-MATERIAL WORKTOP JIG 750MM

    4x ABS Plastic pins

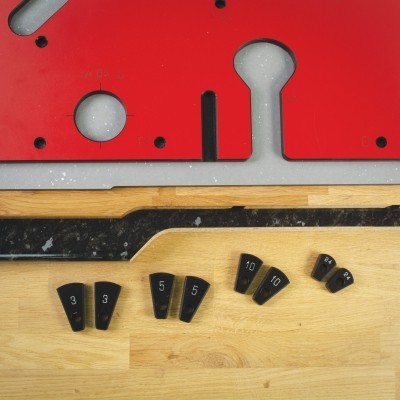

    4x Cams (pairs)
