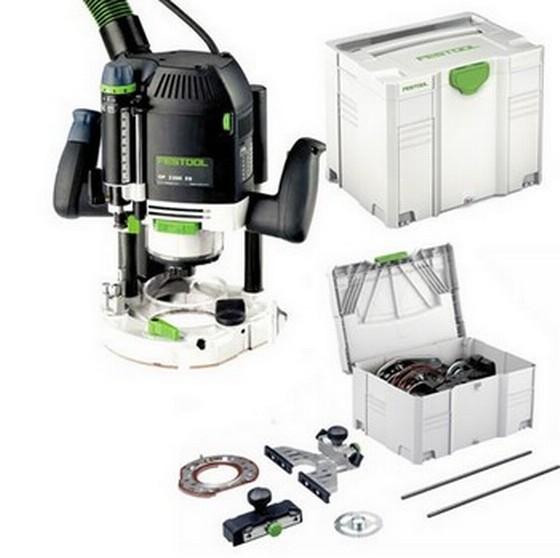

FESTOOL 574396 2200W OF2200 EB-SET 1/2" ROUTER OF2200 EB-SET GB 110V (SUPPLIED IN T-LOC SYSTAINER CASE)

FESTOOL 574396 2200W OF2200 EB-SET 1/2" ROUTER OF2200 EB-SET GB 110V (SUPPLIED IN T-LOC SYSTAINER CASE)

Important Information:  This machine is not supplied with a Plug, you will need a 110v 16amp plug.



Strengths and benefits

Top power development and fully variable speed for hard materials and increased material thicknesses
Ergonomic working because of the side stop that can be shifted by 30°
Tool-free copying ring and base-runner change
Fast, convenient router-bit change with rocker and ratchet principle
Detachable base plate for fast profile cutter adjustment
Dual guide column clamp for extra torsional rigidity and greater precision
Simple and exact routing depth setting to 1/10 mm
Dust extraction of up to 99 % during edge routing through adjustable extraction ring and chip catcher

Main applications

Rabbeting, grooving and profiling
Routing large cutouts, circles and arcs with the MFS routing template
Creating worktop corner joints with the worktop template
Routing seals and espagnolettes in windows and doors
Stationary routing of up to Ø 60 mm with the TF 2200 table router
Flush trimming, making cutouts, grooving, profiling of mineral material
Creation of stair stringers in hardwood or softwood

Technical data

Power consumption 2200 W
Idle engine speed 10000-22000 min-1
Collet Ø 6-12,7 mm
Routing depth adjustment range 80 mm
Fine height adjustment range 20 mm
Cutter diameter 89 mm
Connection Ø d/e 36 (27) mm
Weight 7,8 kg

Includes

•Ø 1/2" (12.7 mm) clamping collet
• Ø 12 mm clamping collet
• Ø 8 mm clamping collet
• copying ring Ø 30 mm
• chip deflector
• accessories SYSTAINER

Important Information:

This machine is not supplied with a Plug, you will need a 110v 16amp plug.
