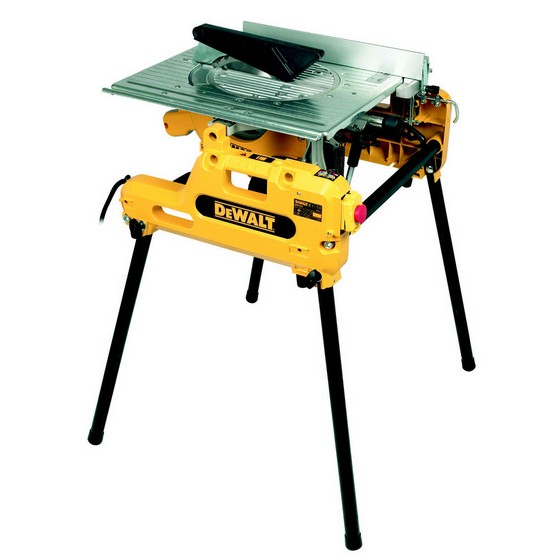

DEWALT DW743N 250MM COMBINATION FLIP OVER SAW 240V

Ref: DW743N
new
Feefo logo
Delivery Next day delivery available on this item
The Dewalt DW743N is a classic TGS flip-over bevelling saw, featuring a flexible, rapid tool-free transformation from a saw bench to a mitre saw. More
£0.00 VAT exempt
  • Item is no longer available. For more details please call 01223 498700
  • DEWALT DW743N 250MM COMBINATION FLIP OVER SAW 240V

    • The classic TGS flip-over bevelling saw
    • Rapid tool free transformation from a saw bench to a mitre saw provides flexibility in a range of site and workshop applications
    • Handle mechanism allows the guard to retract automatically in mitre mode allowing safe and easy use
    • New high output heavy duty high torque induction motor provides years of maintenance free use, suitable for workshop applications where low noise characteristics are desirable
    • Three way extractor connection facility for efficient dust extraction
    • Integrated carry handles provide greater portability
    • Updated design for maximum cutting capacity across the range of mitre and bevel angle

    Internal code: O0308458

  • DEWALT DW743N 250MM COMBINATION FLIP OVER SAW 240V

    • Power Input 2000 Watts
    • Power Output 1550 Watt
    • Blade Speed 2850 rpm
    • Blade Diameter 250 mm
    • Blade Bore 30 mm
    • Bevel Capacity 45 °
    • Mitre Capacity [right/left] 45 / 45 °
    • Cutting Capacity at 90°/90° (W x H) 140 × 68 mm
    • Cutting Capacity at 90°/90° (W x H) 180 × 20 mm
    • Cutting Capacity at 45°/90° (W x H) 95 × 70 mm
    • Cutting Capacity at 45°/90° (W x H) 120 × 46 mm
    • Cutting Capacity at 90°/45° (W x H) 70 × 95 mm
    • Cutting Capacity at 90°/45° (W x H) 150 × 20 mm
    • Max. Cutting Capacity at 45°/45° - mm
    • Max. Cutting Capacity [Sawbench position 90°/90°] 0 - 70 mm
    • Max. Cutting Capacity [Sawbench position 90°/45°] 0 - 32 mm
    • Weight 37 kg
    • Depth 670 mm
    • Length 700 mm
    • Height 750 mm
    • Hand/Arm Vibration - Cutting Wood 1.9 m/s²
    • Uncertainty K 1 (Vibration) 1.5 m/s²
    • Sound Power 106.5 dB(A)
    • Sound Power Uncertainty 3 dB(A)
    • Sound Pressure 93.5 dB(A)
    • Sound Pressure Uncertainty 3 dB(A)
  • DEWALT DW743N 250MM COMBINATION FLIP OVER SAW 240V

    • TCT tooth saw blade
    • Parallel fence
    • Push stick
    • 4 detachable legs
    • Saw blade guard
    • Assembly tool
    • Material Clamp
