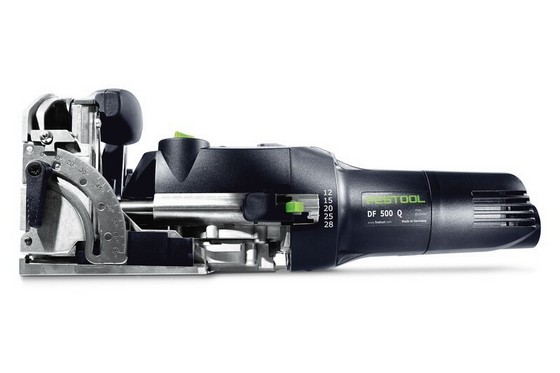

FESTOOL 578241 DF500 DOMINO JOINTER (LIMITED EDITION)
Dispatched within 2 to 3 working days
-
More precise joints.
Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Ergonomic shape for ease of operation in any position
- Rotation-proof joint with DOMINO dowels providing maximum stability
- System accessories compatible with both DOMINO jointers
Achieve ideal results more quickly:
Convenient and safe:
Systems get it done:
Main applications
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
- Exhibition stand construction

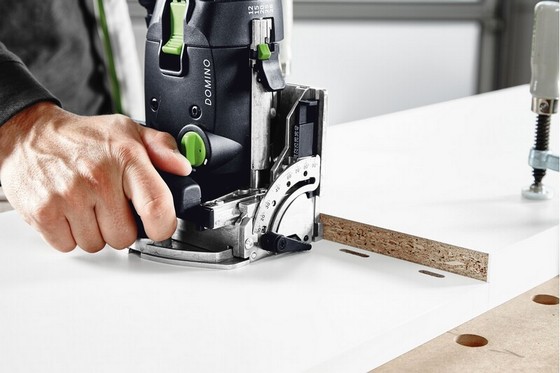

- For panel joins

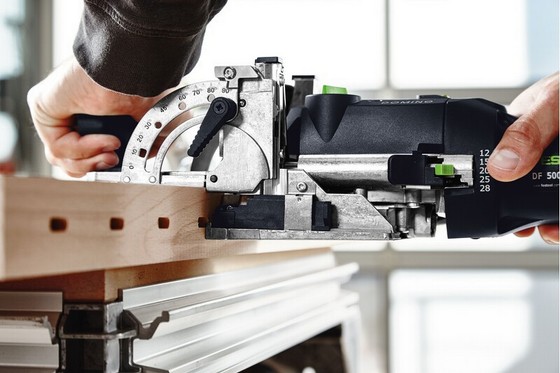

- For frame and rack joints
Internal code: TP132670
- Power consumption420 WIdle engine speed25 500 min⁻¹Depth stop for routing depth12, 15, 20, 25, 28 mmMax. routing depth28.00 mmDOMINO slot cutter dia.4, 5, 6, 8, 10 mmRouting height adjustment5 - 30 mmMitre routing0 - 90 °Dust extraction connection diameter27 mmCable length4.00 mDrive typeMainsProduct weight without accessories3.50 kgTransport weight incl. accessories5.93 kg
-
Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
-
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
-
Plug it
Removable, replaceable mains cable with safety lock for quick conversion.
Routing: Uncertainty (vibration) K1.50 m/s²Routing: Uncertainty (noise) K3.00 dBRouting: Total vibration average, Ah3.00 m/s²Routing: Standards series EN60745-2-19Routing: A-weighted sound pressure level, LpA84.00 dB(A)Routing: A-weighted sound power level, LWA95.00 dB(A)
-
Domino cutter D5
Limited Edition Blue Systainer³
100 years cap
Additional stop
open ended spanner, WAF 8
Plug it-power cable (4m)
