TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE

Ref: H/JIG/C
new
Feefo logo
Delivery Dispatched within 2 to 3 working days

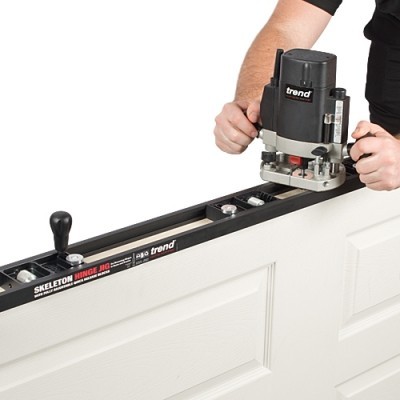

The Trend Hinge Jig Skeleton is a two part adjustable block portable template set designed for recessing hinges in wooden doors & frames with a router. More
Was £202.80
£166.80 inc. VAT
(£139.00 exc. VAT)
  • TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE

    + FREE Trend Stealth Mask worth £22.80! For a limited time only, while stocks last

    • It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
    • Used on-site & in joinery shops to increase productivity with excellent results.
    • Fully adjustable apertures for fire door requirements and renovation work.
    • Idea for fitting a new door in an old frame.
    • No need for marking out in the conventional way.

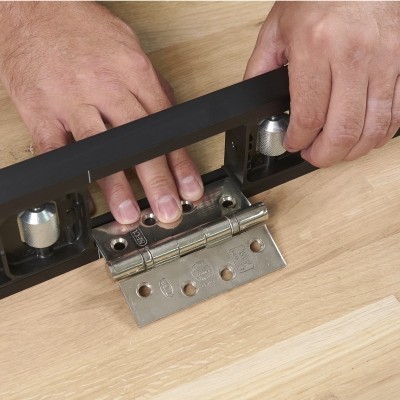

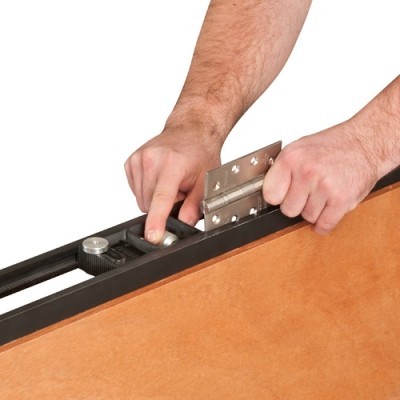

    • Quick & simple to set-up as the hinge is used as the pattern.

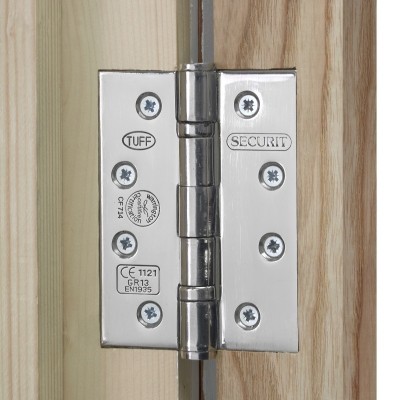

    • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
    • Can be used on both inside and outside doors.

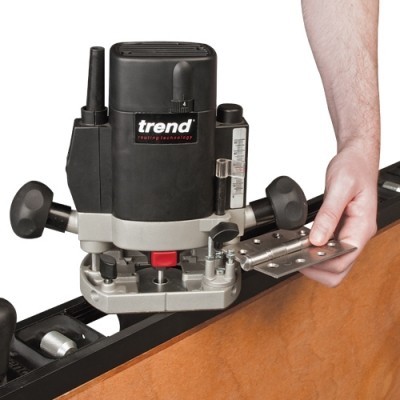

    • Use with a light duty plunge router with 1/4 inch collet.

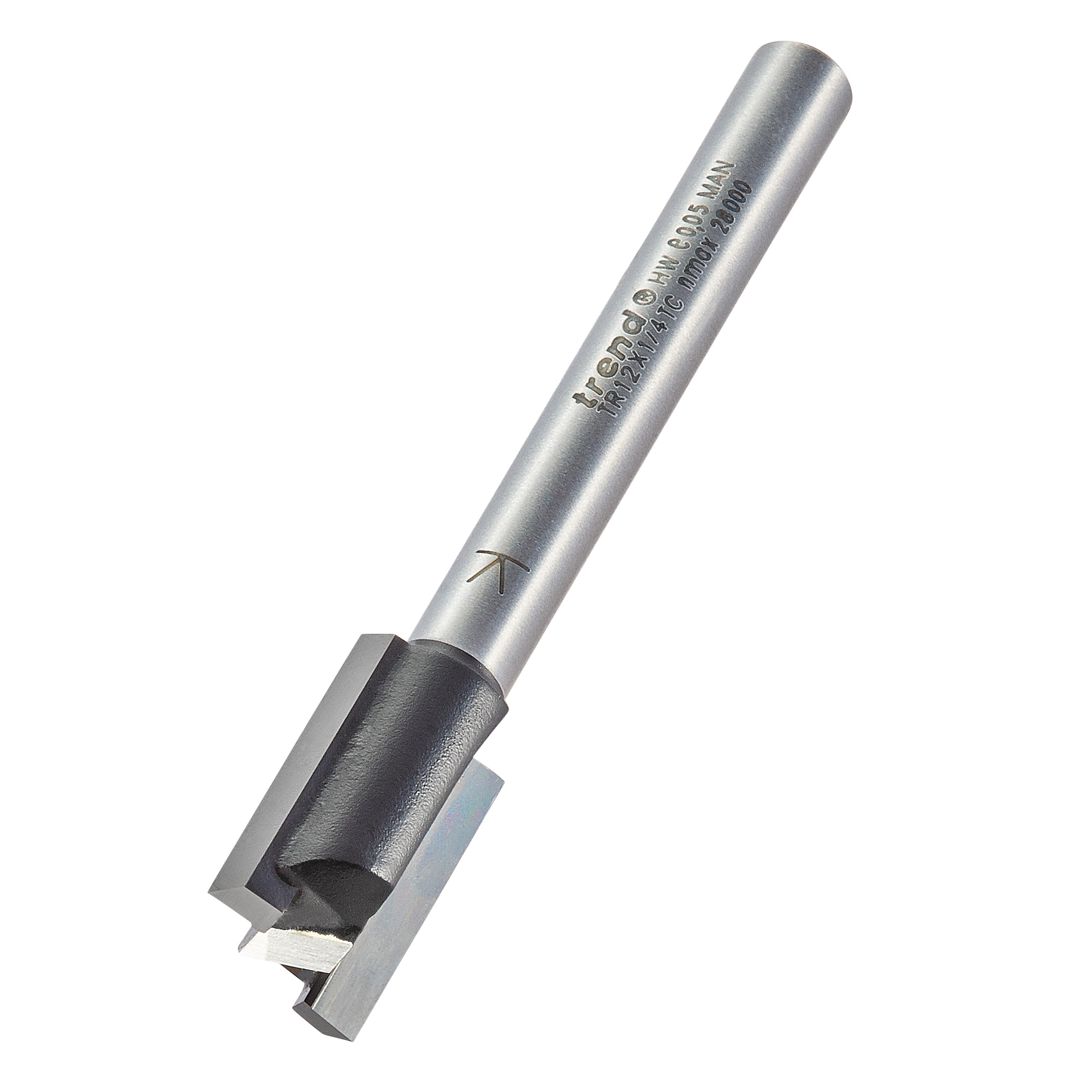

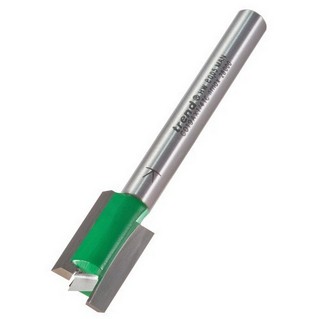

    • Long reach router cutter required, 12mm diameter with 70mm overall length.
    • Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
    • Unibase may be needed.
    • Patent No. GB2490139
    • T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

    Internal code: TP260950

  • TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE

    Hinge sizes possible:

    • Length min. 2 5/8" (67 mm)
    • Length max. 5" (127 mm)
    • Width min. 1/2" (12.7 mm)
    • Width max. 1 3/8" (35 mm)
    • Width max. in 35mm rebate 23 mm
    • Width max. in 44mm rebate 32 mm

    Door sizes possible:

    • Height min. 6' 5" (1956 mm)
    • Height max. 2100 mm* (6' 10"*)
    • Thickness min. 5/8" (16 mm)
    • Thickness max. 2" (51 mm)
    • Weight 2.9 kg
    • Jig overall length 1956 mm
  • TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE

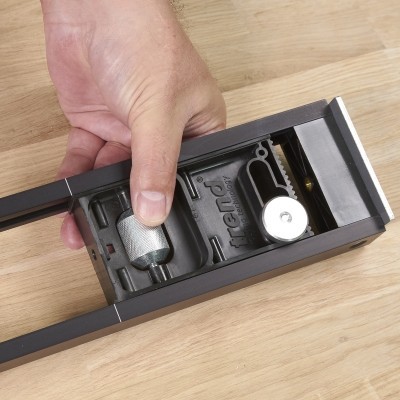

    • 3x Hinge sliding aperture block assemblies
    • 4x Bradawls (short blade)
    • 1x 16mm guide bush
    • 1x Carry case
