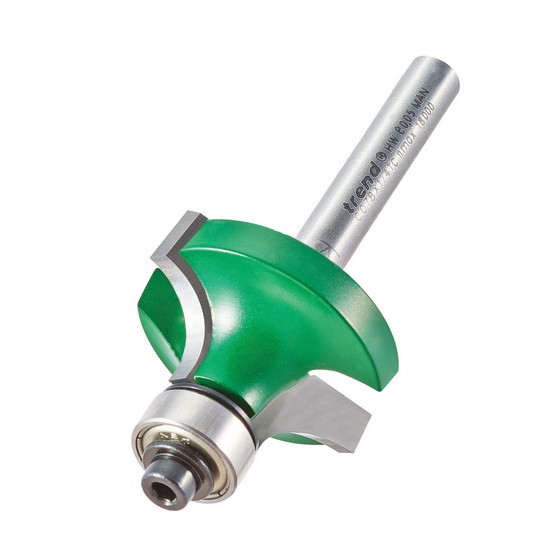

TREND C078X1/4TC ROUND/OVER 9.5MM RAD X 15.9MM CUT

Ref: C078X1/4TC
new
Feefo logo
Delivery Next day delivery available on this item
Self-guiding cutters for rounding over edges do not require a side fence. Used for producing Ovolos and Round overs. More
£54.37 inc. VAT
(£45.31 exc. VAT)
  • TREND C078X1/4TC ROUND/OVER 9.5MM RAD X 15.9MM CUT

    • Self-guiding cutters for rounding over edges do not require a side fence.
    • They are supplied with two bearings.
    • Use the larger bearing for a round-over.
    • If the cutter is lowered, a top quirk can be produced.
    • Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

    Internal code:

  • TREND C078X1/4TC ROUND/OVER 9.5MM RAD X 15.9MM CUT

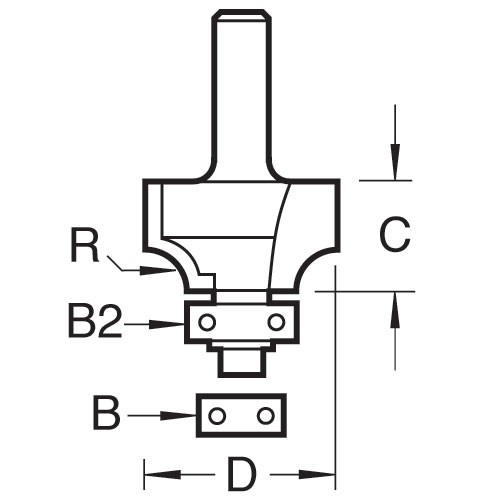

    • D=31.7 mm
    • C=5/8 inch
    • C=15.9 mm
    • B=9.5 mm
    • B2=12.7 mm
    • R=9.5 mm
    • Overall length=67.5 mm
    • Shank Diameter=1/4 inch
