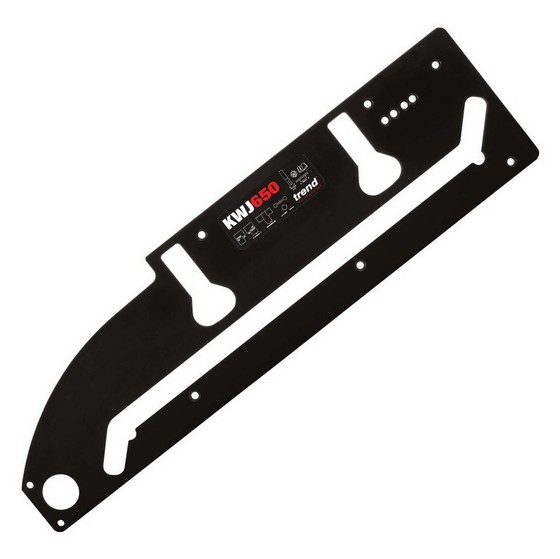

TREND KWJ650 WORKTOP JIG 650MM

TREND KWJ650 WORKTOP JIG 650MM

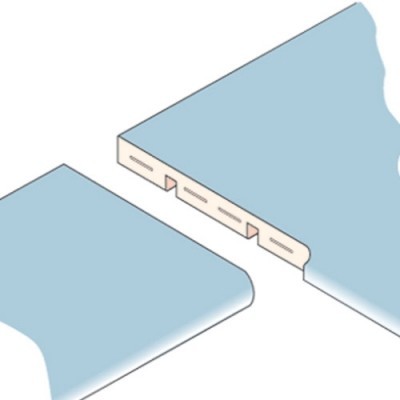

• Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
• Left hand and right hand corners, 400mm radius peninsular joint, 35mm kitchen door hole.
• Fixed lengths for 600mm, 616mm, 635mm and 650mm wide worktops.
• Cuts up to 40mm thick worktops with or without anti-drip postformed edge.

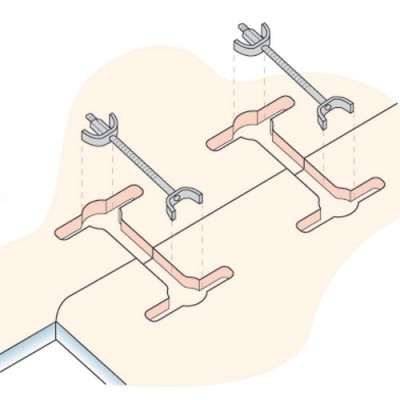

• Two open ended bolt recesses (dog bone style) for 150mm bolts.
• 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
• Pins made from ABS plastic for strength.
• Jig requires:

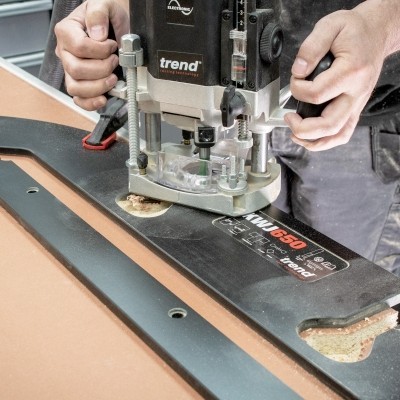

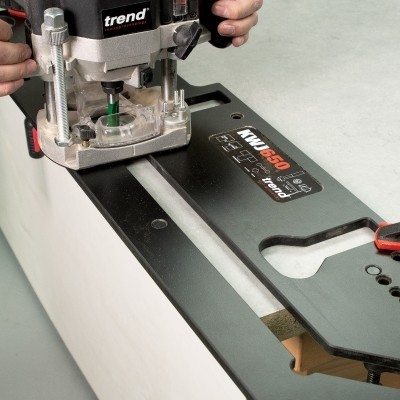

• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter ref. GB30.
• A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
• Two clamps.
