TREND LOCK/JIG/A MORTICE LOCK AND DEADLOCK JIG FOR DOORS 34-58MM

Ref: TREND LOCK/JIG/A
new
Feefo logo
Delivery Dispatched within 2 to 3 working days

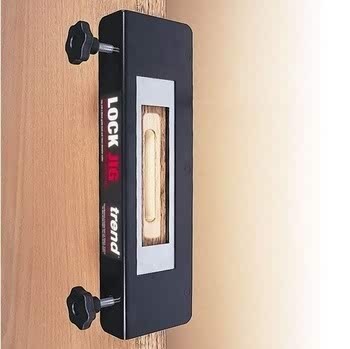

Trend Lock Jig, for routing the face-plate and mortise for larger locks quickly and accurately. Suitable for doors measuring 34-58mm in width. More
Was £165.24
£142.80 inc. VAT
(£119.00 exc. VAT)
  • TREND LOCK/JIG/A MORTICE LOCK AND DEADLOCK JIG FOR DOORS 34-58MM

    • Suitable for DDA (Disabilty Discrimination Act) lock size.
    • 20mm x 235mm radius end face plate and 17mm x 170mm mortise.
    • Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
    • Suitable for doors 34mm to 58mm thick.
    • An auger bit and drill is required to complete deep mortises.
    • The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter.
    • A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

    Internal code: TP268150

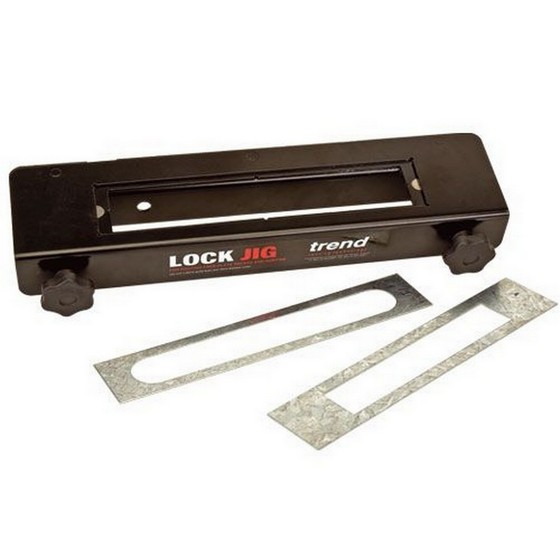

  • TREND LOCK/JIG/A MORTICE LOCK AND DEADLOCK JIG FOR DOORS 34-58MM

    • 1x Guide bush collar
    • 2x Face plate template
    • 1x Mortise template
    • 1x Template adapter
    • 6x Spacer Fingers
