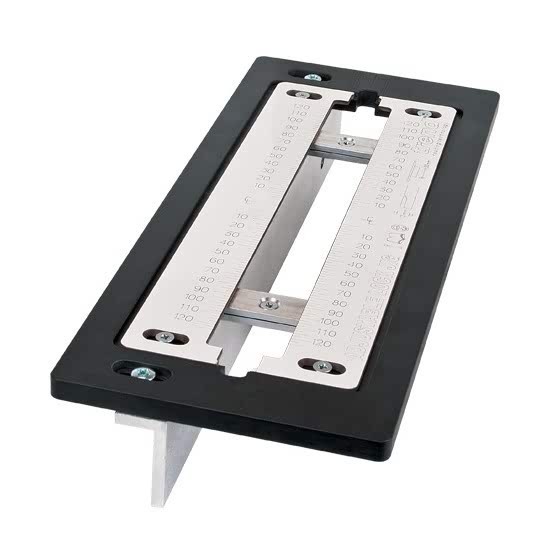

TREND LOCK/JIG/B ADJUSTABLE TRADE LOCK JIG

Ref: LOCK/JIG/B

Next day delivery available on this item

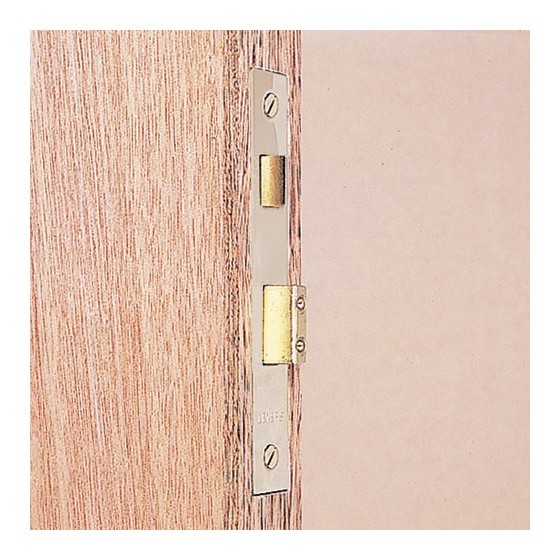

The Trend Adjustable Jig is fully adjustable for lock face plate length up to 250mm, used to rout popular door locks. More

£102.00 inc. VAT

(£85.00 exc. VAT)

TREND LOCK/JIG/B ADJUSTABLE TRADE LOCK JIG
- Fully adjustable for lock face plate length up to 250mm
- Quick and easy to set up using engraved lines for lock size and door sizes
- Fast, clean & accurate results on doors even in hardwood

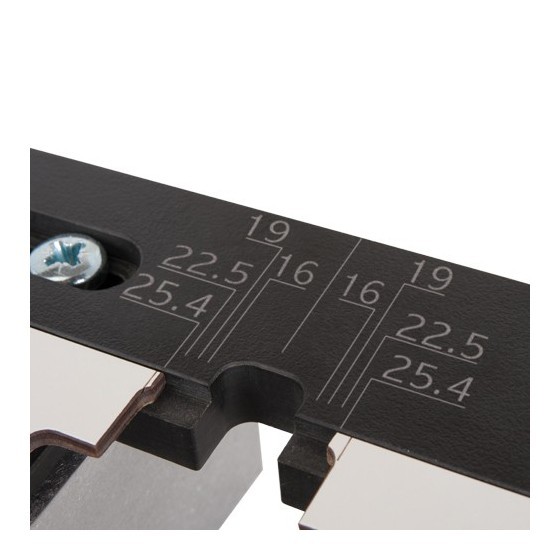

- Engraved for 16mm and 19mm lock width and 22.5mm and 25.4mm face plate widths
- Measuring required for other lock widths
- Engraved on underside to allow set up for 35mm, 40mm, 44mm and 54mm door widths
- Deeper mortises can be achieved with a suitable size of auger bit
- Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm
- Includes a pair of setting blocks for specific lock widths and to aid door centring
- The jig requires a 1/2-inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 10mm spigot, 12mm diameter long reach cutter and two quick action clamps
- A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise
Internal code: TP268160
TREND LOCK/JIG/B ADJUSTABLE TRADE LOCK JIG
- Door thickness min.: 30 mm
- Door thickness max.: 80 mm
- Faceplate length min. (OL): 30 mm
- Faceplate length max. (OL): 250 mm
Face plate width engraved size:
- Width 22.5 mm
- Width 25.4 mm (1 inch)
Mortise width engraved size:
- Width 16 mm (5/8 inch)
- Width 19 mm (3/4 inch)
TREND LOCK/JIG/B ADJUSTABLE TRADE LOCK JIG
- Adjustable Jig
- 2x setting block
