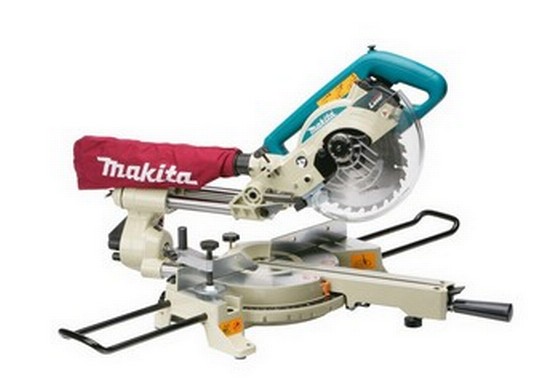

MAKITA LS0714 190mm SLIDE COMPOUND MITRE SAW 110V

MAKITA LS0714 190mm SLIDE COMPOUND MITRE SAW 110V

Features:

Double sliding mechanism makes it lighter and more compact than ever. Powerful 10 AMP motor delivers 6,000 RPM with dual smooth-sliding head, Lightweight and compact with 300mm maximum cutting capacity and wide large aluminum turn base supports large stock for efficient cutting. Precision cutting double sliding mechanism makes it lighter - weighs only 27.6 lbs. More compact, requiring smaller work space, allowing quick storing and easy transport to and from the job site.

Its large cutting capacity is achieved by a double sliding mechanism extends the sliding length to 300mm for increased cutting width, trench cutting facility. Can cut over 2in. x 8in. at 45o Perfect for sofits, dados, skirting, architraves etc. 9 positive stops at 15°, 22.5°, 30°, 45° right and 0° for the most common mitre cuts.

Precision cutting with the use of short steel poles as 4 rails protects the rails from bending for accurate cutting, and each rail rides on a linear bearing for smooth dual sliding of the saw head. Convenient grip located on the top of the saw for easy transport, also remove the dust bag and you can connect it to a vacuum extractor (subject to your hose size)

Cutting Capacities:

• Cross Cut 90° 52mm x 300mm
• Mitre Cut (left & right) 45° Left 52mm x 212mm 57° Right 52mm x 163mm
• Bevel Cut (left & right) 45° Left 40mm x 300mm 5° Right 40mm x 300mm 45° Left 45mm x 265mm
• Compound Cut (Mitre 45° & Bevel 45°) 45° left & right 40mm x 212mm

Specifications:

• Max mitre range: 57° to 47°
• Max bevel range: 45° to -5°
• Max mitre cut at 90°: 52x300mm
• Max mitre cut at 45°: 52x212mm
• Blade Diameter: 190mm
• Bore Diameter: 20/30mm
• No Load Speed: 6,000rpm
• Input wattage: 1,010w
• Net Weight: 12.6kg



Supplied with: T.C.T saw blade Socket wrench Hex wrench Dust bag Vertical clamp
