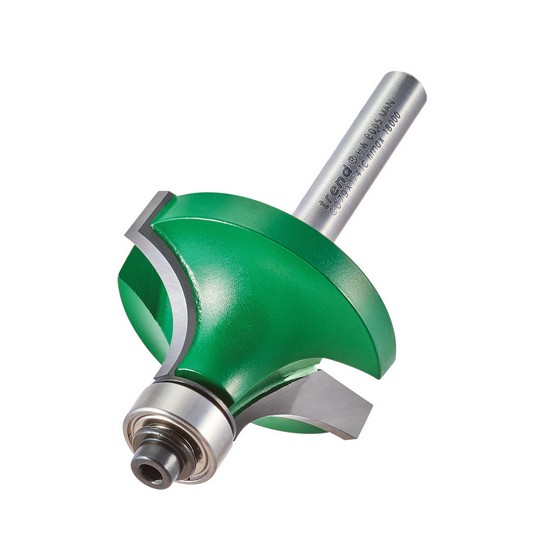

TREND C079X1/4TC ROUND/OVER 12.7MM RAD X 19.1MM CUT

Ref: C079X1/4TC (ST1)
new
Feefo logo
Delivery Dispatched within 2 to 3 working days
Self-guiding cutters for rounding over edges do not require a side fence. Used for producing Ovolos and Round overs. More
£20.00 inc. VAT
(£16.67 exc. VAT)
  • TREND C079X1/4TC ROUND/OVER 12.7MM RAD X 19.1MM CUT

    • Self-guiding cutters for rounding over edges do not require a side fence.
    • They are supplied with two bearings.

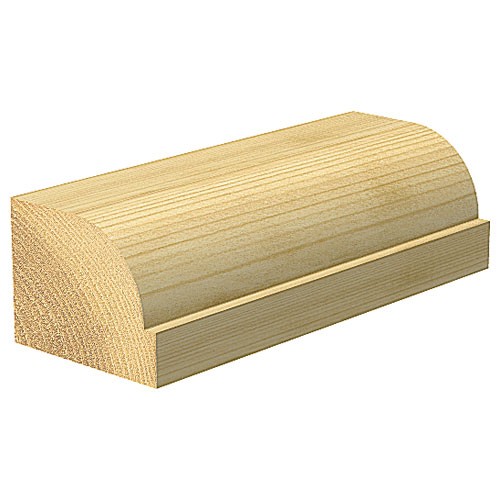

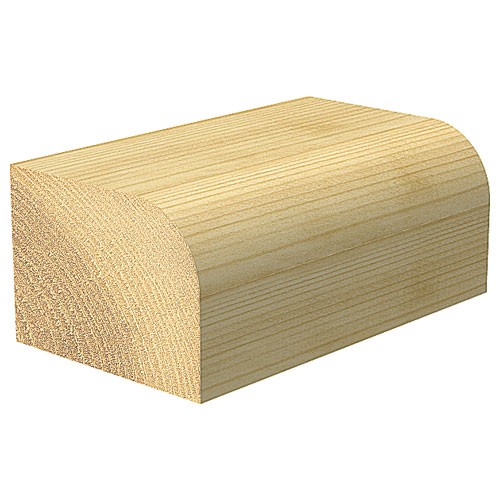

    • Use the larger bearing for a round-over.

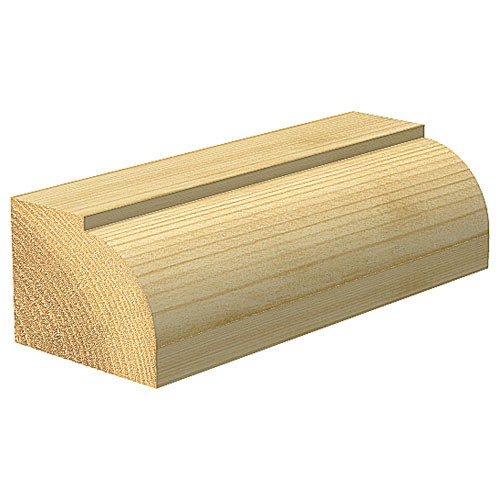

    • If the cutter is lowered, a top quirk can be produced.

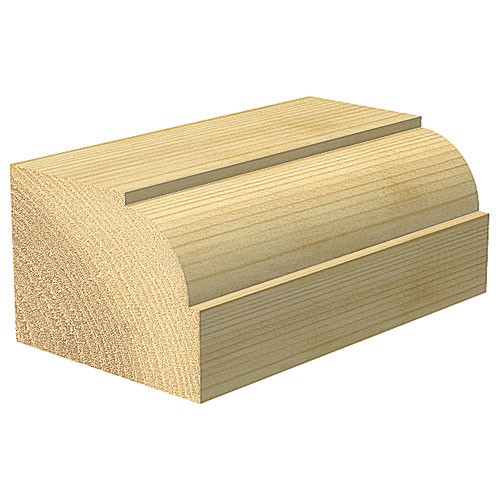

    • Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

    Internal code:

  • TREND C079X1/4TC ROUND/OVER 12.7MM RAD X 19.1MM CUT

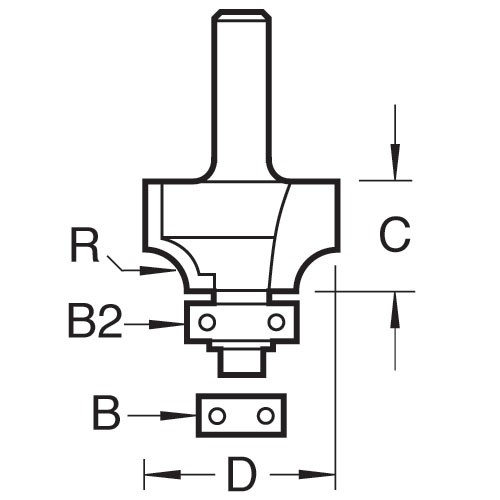

    • D=38.0 mm
    • C=3/4 inch
    • C=19.1 mm
    • B=9.5 mm
    • B2=12.7 mm
    • R=1/2 inch
    • R=12.7 mm
    • Overall length=70.5 mm
    • Shank Diameter=1/4 inch
  • TREND C079X1/4TC ROUND/OVER 12.7MM RAD X 19.1MM CUT
