TREND DG/PRO DRAINING GROOVE PRO JIG
Ref: DG/PRO
new
Next day delivery available on this item

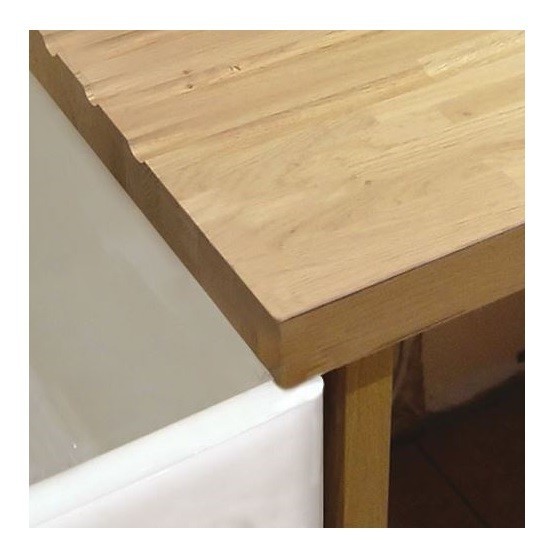

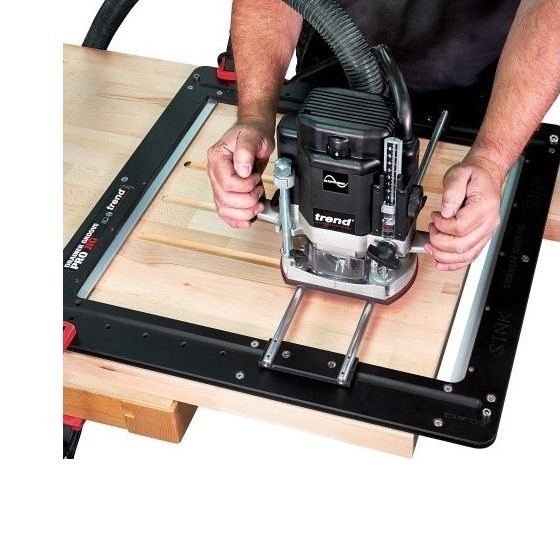

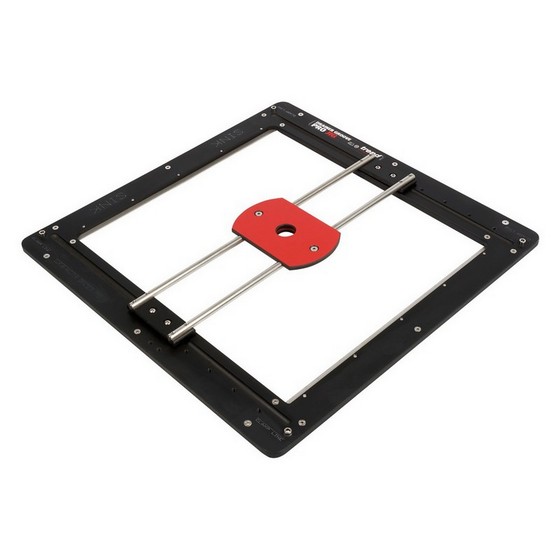

The Trend DG/PRO Draining Groove Pro Jig is a frame for routing drainer grooves in solid timber and solid surface worktops.
More
£374.58 inc. VAT
(£312.15 exc. VAT)
-
TREND DG/PRO DRAINING GROOVE PRO JIG
This Trend pro jig has five inner templates accessories available to give various groove affects such as straight slot, straight fan, curved fan, lightning fan and hot rod.
- Made from 12 mm hardwearing CNC machined phenolic
- X and Y-axis ski and carriage allows forward and back, and side to side movement
- Provides a 0.5 degree fall
- Router carriage has hole to accept a 30 mm guide bush
- Carriage can be locked to allow parallel groove routing for standard drainer grooves

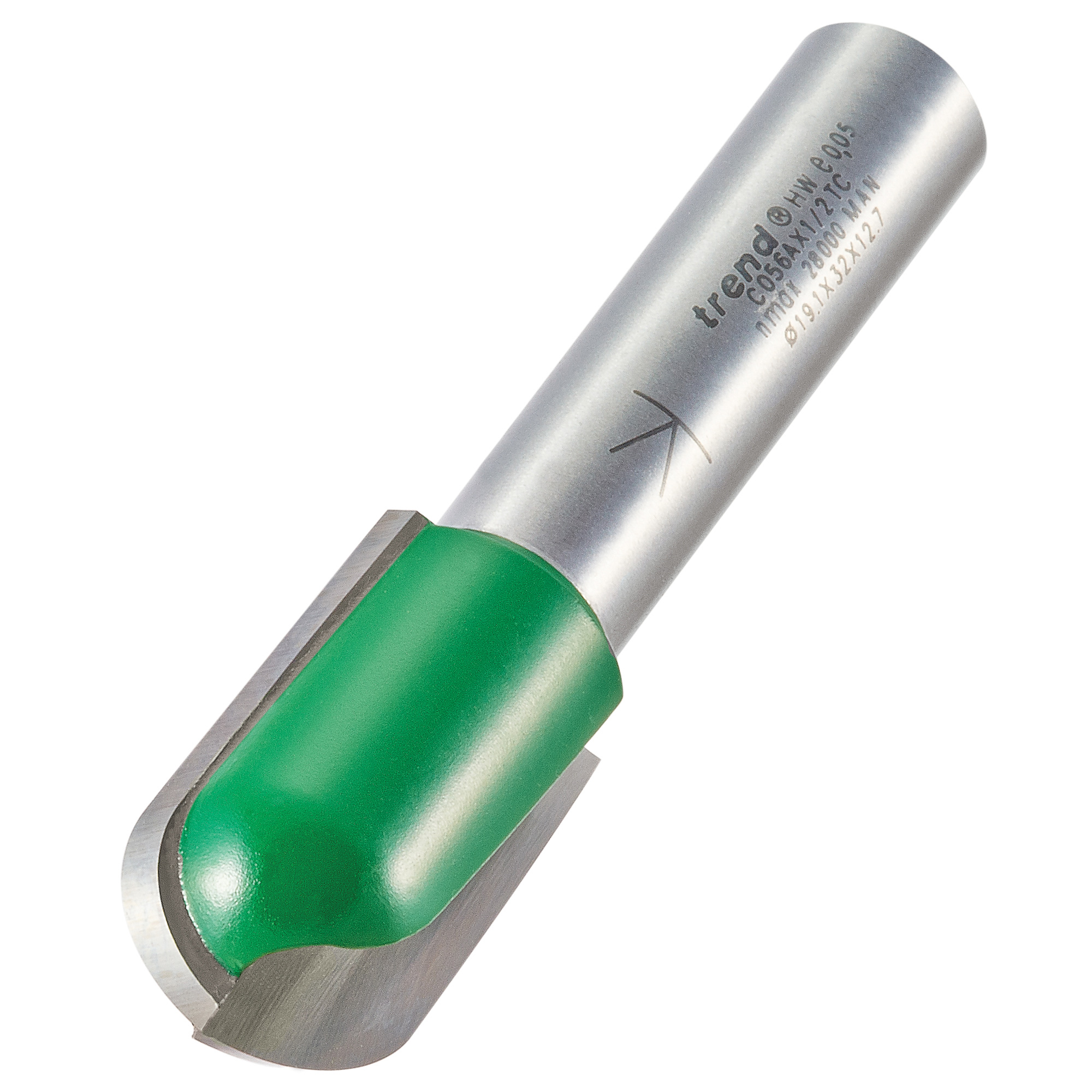

- Router carriage can also be used for tapered surfacing applications with a 19 mm diameter straight cutter
- Outer frame has index holes at 25 mm centres to restrict length of slots and includes two index pins
Internal code: TP263070
TREND DG/PRO DRAINING GROOVE PRO JIG
- Fall: 0.5 degree
- Groove length: 447 mm
- X-axis :447 mm
- Y-axis: 415 mm
- Length: 600 mm
- Height: 600 mm
- Width: 12 mm
- Weight: 4kg
- Guide bush: 30 mm
TREND DG/PRO DRAINING GROOVE PRO JIG

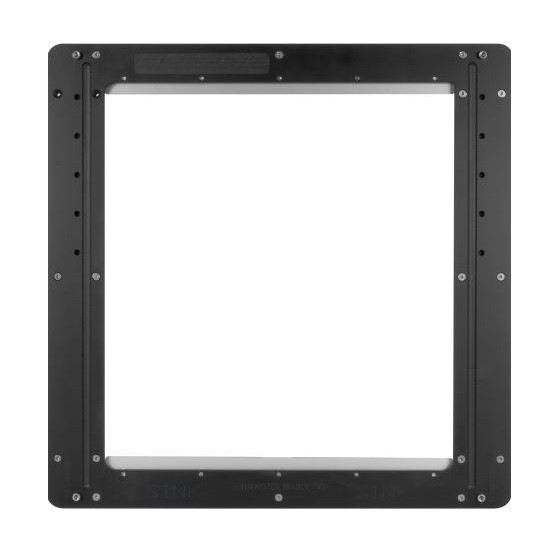

- 1 x Frame

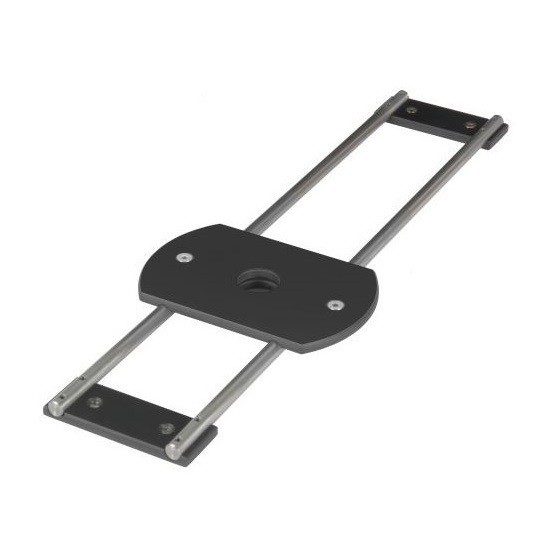

- 1 x Router carriage ski assembly
- 2 x Index pins
- 1 x 4mm hex key
- 1 x 5mm hey key
-
TREND DGP/IP/CF CURVED FAN TEMPLATE
£71.99 inc VAT £59.99 exc VAT
TREND DGP/IP/HR HOT ROD TEMPLATE FOR DG/PRO JIG
£71.99 inc VAT £59.99 exc VAT
TREND DGP/IP/LF LIGHTNING FAN TEMPLATE FOR DG/PRO JIG
£71.99 inc VAT £59.99 exc VAT

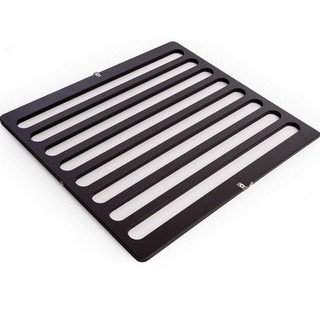

TREND DGP/IP/SF STRAIGHT FAN TEMPLATE FOR DG/PRO JIG
