TREND DGP/IP/HR HOT ROD TEMPLATE FOR DG/PRO JIG

Ref: DGP/IP/HR
new
Feefo logo
Delivery Next day delivery available on this item

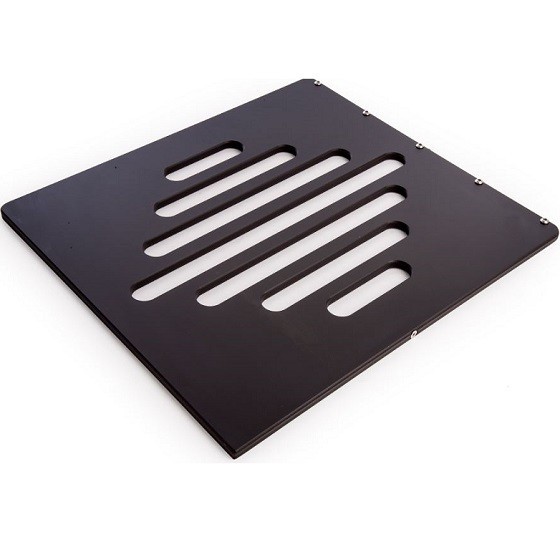

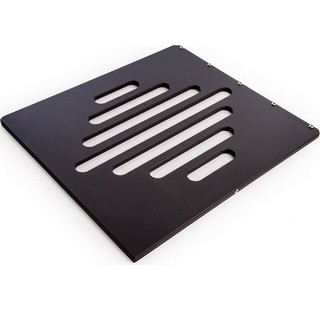

The Trend DGP/IP/HR Hot Rod Template For DG/Pro Jig is an accessory inner plate template for use with the DG/Pro jig. More
£78.00 inc. VAT
(£65.00 exc. VAT)
  • TREND DGP/IP/HR HOT ROD TEMPLATE FOR DG/PRO JIG

    This Trend hot rod template is an ideal for accessory for professional woodworkers and carpenters to use in conjunction with their DG/Pro jig.

    • Creates grooves for hot rod in solid timber and solid surface worktops
    • Made from 12mm hardwearing CNC machined phenolic
    • Accepts hot rods of size 100 mm, 200 mm, 300 mm and 400 mm
    • Requires suitable plunge router with 30 mm guide bush
    • It is desirable to recess the rods into the worktop by approximately one third to one half of the rod diameter
    • Hot rods not included
    • Must be used with the DG/PRO jig frame

    Internal code: TP263160

  • TREND DGP/IP/HR HOT ROD TEMPLATE FOR DG/PRO JIG

    • Pitch: 50 mm
    • Groove length: 100, 200, 300 and 400 mm
    • Template Requirements:
    • Guide bush: 30 mm
    • Plunge router: 1/2-inch
    • Cutter Cove: R6.35 mm or R6 mm
    • Length: 500 mm
    • Width: 500 mm
    • Thickness: 12 mm
    • Weight: 3.5 kg
    • Total Shipping Weight: 4.5 kg
