TREND ECL/JIG EURO CYLINDER LOCK JIG

Ref: ECL/JIG
new
Feefo logo
Delivery Next day delivery available on this item
The Trend ECL/JIG Euro Cylinder Lock Jig is made from premium high pressure, 12mm thick laminate; ensuring this jig is built to last. More
£105.06 inc. VAT
(£87.55 exc. VAT)
  • TREND ECL/JIG EURO CYLINDER LOCK JIG

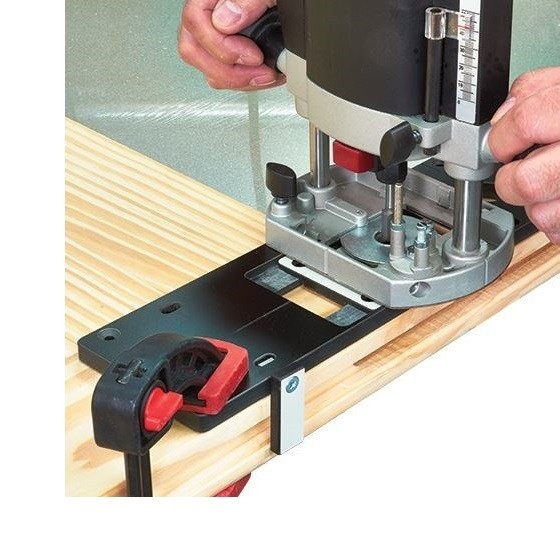

    This Trend lock jig is ergonomic and simple to use, allowing for the recess for a Euro Lock Cylinder barrel to be routed out effortlessly.

    • Routs out recess to suit Euro lock cylinder barrel size 33 mm x 17 mm/10 mm
    • Sliding plate allows handle pitch to lock body adjustment from 45 mm to 115 mm
    • 44 mm and 57 mm backset
    • Jig is designed to give a 1 mm clearance around the barrel
    • Allows 16 mm diameter hole for handle spindle to be routed
    • Holes for use with 2.75 mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40 mm centres
    • Made from 12 mm thick High Pressure Laminate for longer life
    • Long rotating edge stops for use with 44 mm doors with leading edge

    Internal code: TP263150

  • TREND ECL/JIG EURO CYLINDER LOCK JIG

    • Barrel size: 33 mm x 17/10 mm
    • Finished hole size: 35mm x 19/12 mm
    • Backset: 44 mm & 57 mm
    • Handle spindle hole: 16 mm
    • Size: 490 mm x 101 mm
  • TREND ECL/JIG EURO CYLINDER LOCK JIG

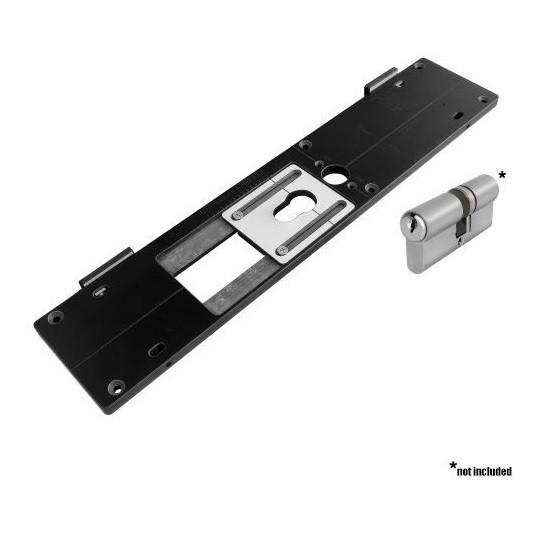

    • 1 x Template with sliding aperture
    • 2 x Edge guides
    • 1 x Spacer pack
