TREND LOCK/JIG MORTICE LOCK & DEADLOCK JIG

Ref: LOCK/JIG
Free next day delivery on this item
This jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks. For most common sash mortises & dead locks, with up to 3 inch deep mortises More
£109.96 inc. VAT
(£91.63 exc. VAT)
  • Choose a store for collection:
  • TREND LOCK/JIG MORTICE LOCK & DEADLOCK JIG

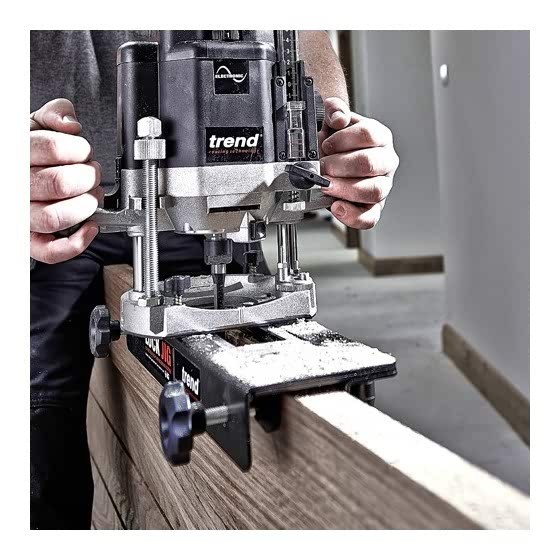

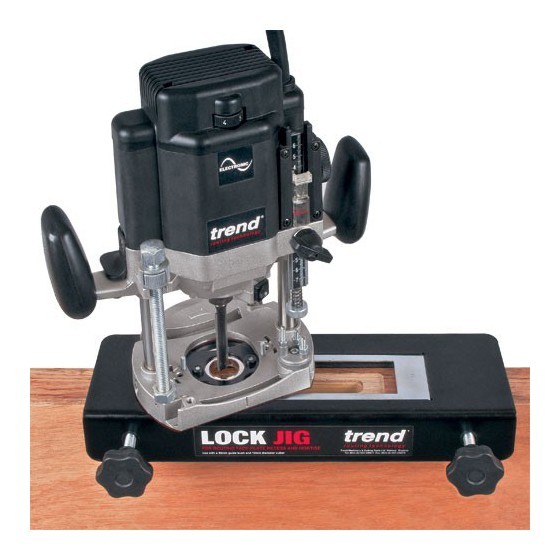

    This jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks.

    • For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate
    • Deeper mortises can be achieved with a suitable size of auger bit
    • Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood
    • Steel plates & body
    • An auger bit and drill is required to complete deep mortises
    • The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise
  • TREND LOCK/JIG MORTICE LOCK & DEADLOCK JIG

    • Door thickness min. 34 mm
    • Door thickness max. 58 mm
    • Template outer size 234.3 x 59.8 x1.5mm

    Mortise Lock Dimensions:

    • 16x72 mm* (5/8" x 2 7/8"): Template A
    • 16x107 mm* (5/8" x 4 1/4"): Template B
    • 19x78 mm* (3/4" x 3 1/8"): Template C
    • 19x109 mm* (3/4" x 4 1/4"): Template D

    *These are maximum mortise lock case (body) lengths, unless radius ends are squared with a chisel. Actual length of mortise is 7mm longer.

  • TREND LOCK/JIG MORTICE LOCK & DEADLOCK JIG

    • 1x Guide Bush Collar
    • 12x Face Plate Templates
    • 4x Mortise Templates
    • 6x Spacer Fingers
